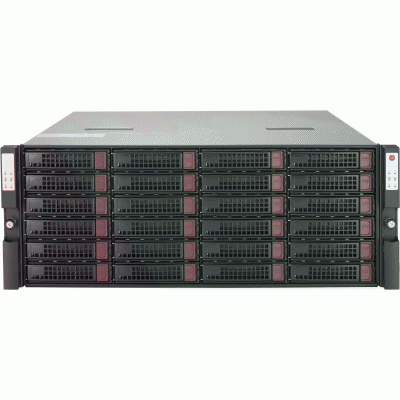

4U server with 24 x HDD bays
(6048R-E1CR24N)

Key Features

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
3. 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8); Slot 3 & 4 occupied by controller and JBOD expansion port)
4. Quad 10GBase-T LAN w/ Intel® X540
5. 24x 3.5" Hot-swap SAS3 (with LSI expander) / SATA3 drive bays; 2x 2.5" optional Hot-swap drive bays (rear)
6. SAS3 via LSI 3108 AOC (HW RAID)
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 9. 920W Redundant Power Supplies Platinum Level (94%)
